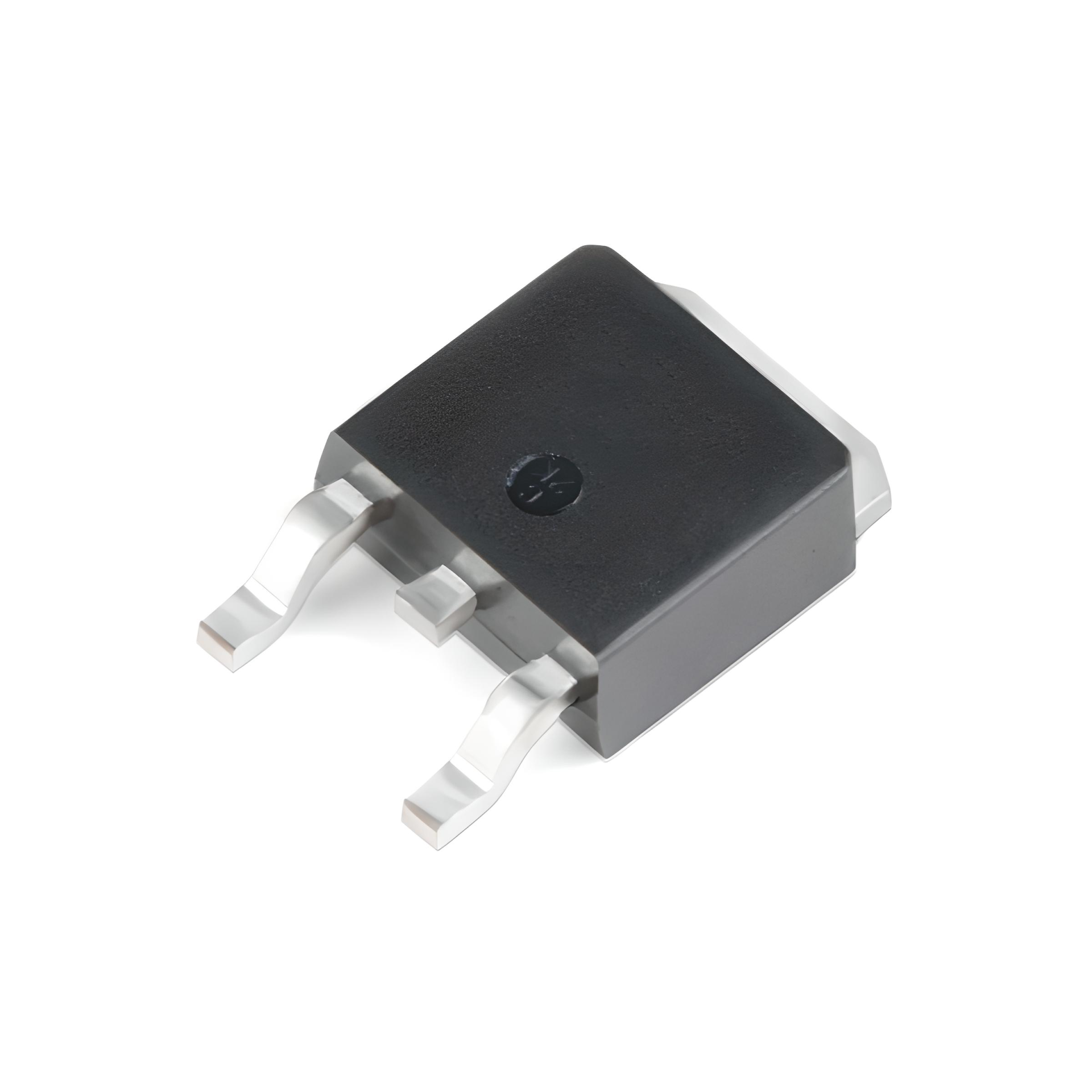

STD30PF03LT4 - (D30PF03L) TO-252 24A 30V 70W 0.028Ω P-CHANNEL MOSFET
STD30PF03LT4 MOSFET
Type Designator: STD30PF03LT4
Marking Code: D30PF03L
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 70 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 16 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 1 V
Maximum Drain Current |Id|: 24 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 18.6 nC
Rise Time (tr): 122 nS
Drain-Source Capacitance (Cd): 345 pF
Maximum Drain-Source On-State Resistance (Rds): 0.028 Ohm
Package: DPAK
