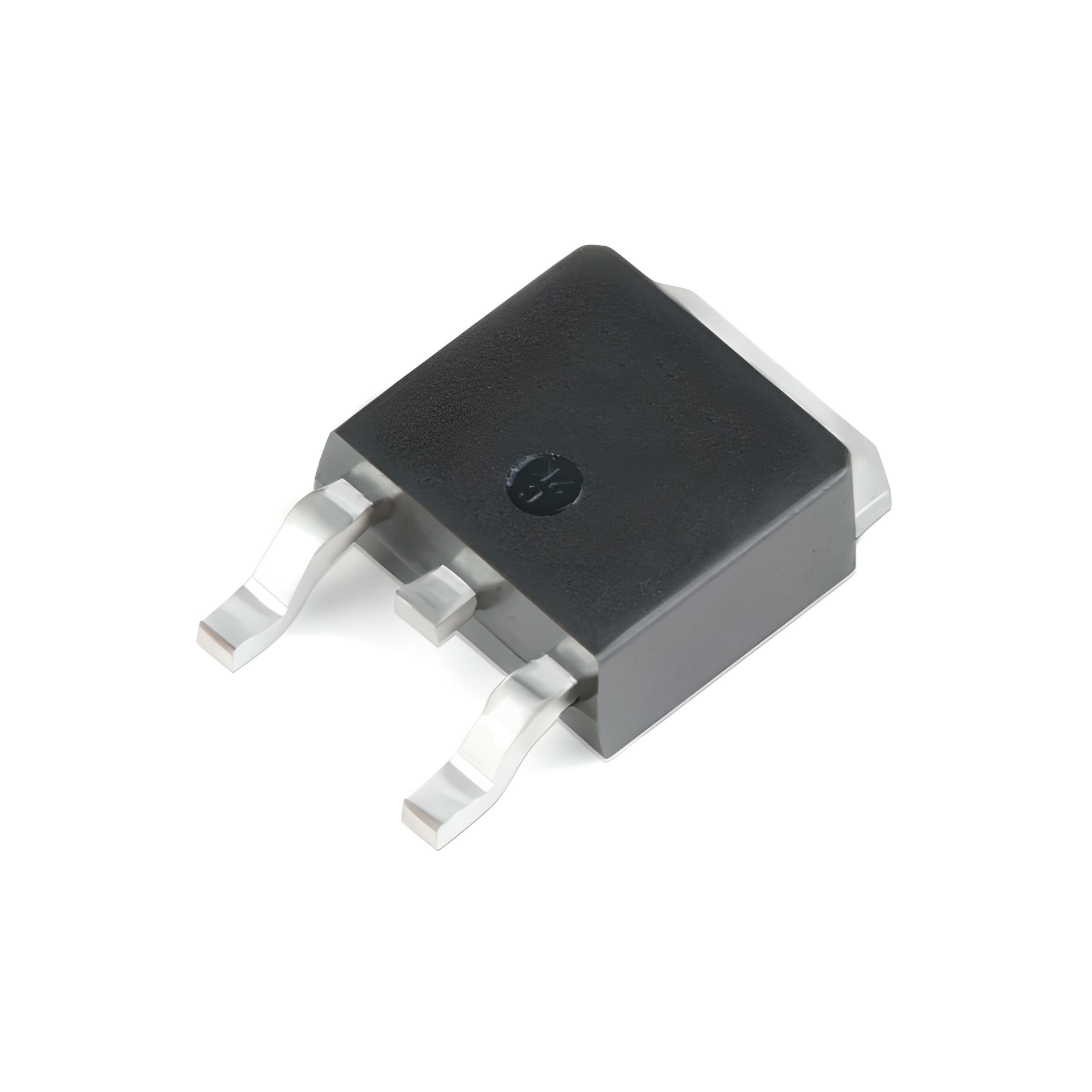

STD5N52U TO-252 4.4A 525V 70W 1.5Ω N-CHANNEL MOSFET
STD5N52U MOSFET
Type Designator: STD5N52U
Marking Code: 5N52U
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 70 W
Maximum Drain-Source Voltage |Vds|: 525 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4.5 V
Maximum Drain Current |Id|: 4.4 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 16.9 nC
Rise Time (tr): 13.6 nS
Drain-Source Capacitance (Cd): 71 pF
Maximum Drain-Source On-State Resistance (Rds): 1.5 Ohm
Package: DPAK
Ürün Bilgisi
STD5N52U MOSFET
Type Designator: STD5N52U
Marking Code: 5N52U
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 70 W
Maximum Drain-Source Voltage |Vds|: 525 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4.5 V
Maximum Drain Current |Id|: 4.4 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 16.9 nC
Rise Time (tr): 13.6 nS
Drain-Source Capacitance (Cd): 71 pF
Maximum Drain-Source On-State Resistance (Rds): 1.5 Ohm
Package: DPAK
