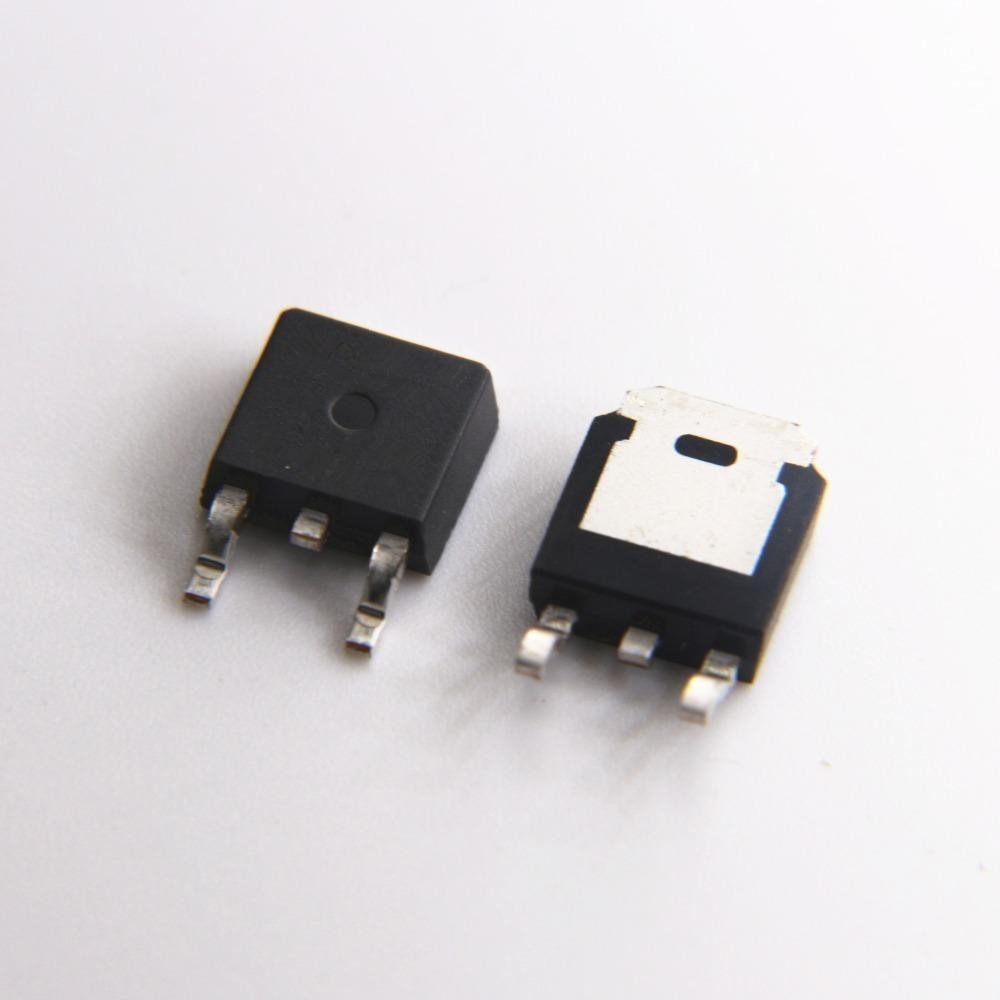

STD9NM50N TO-252 7.5A 500V 0.47Ω N-CHANNEL MOSFET
STD9NM50N MOSFET
Type Designator: STD9NM50N
Marking Code: D9NM50N
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 70 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 7.5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 20 nC
Rise Time (tr): 16 nS
Drain-Source Capacitance (Cd): 46 pF
Maximum Drain-Source On-State Resistance (Rds): 0.56 Ohm
Package: DPAK
Ürün Bilgisi
STD9NM50N MOSFET
Type Designator: STD9NM50N
Marking Code: D9NM50N
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 70 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 7.5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 20 nC
Rise Time (tr): 16 nS
Drain-Source Capacitance (Cd): 46 pF
Maximum Drain-Source On-State Resistance (Rds): 0.56 Ohm
Package: DPAK
