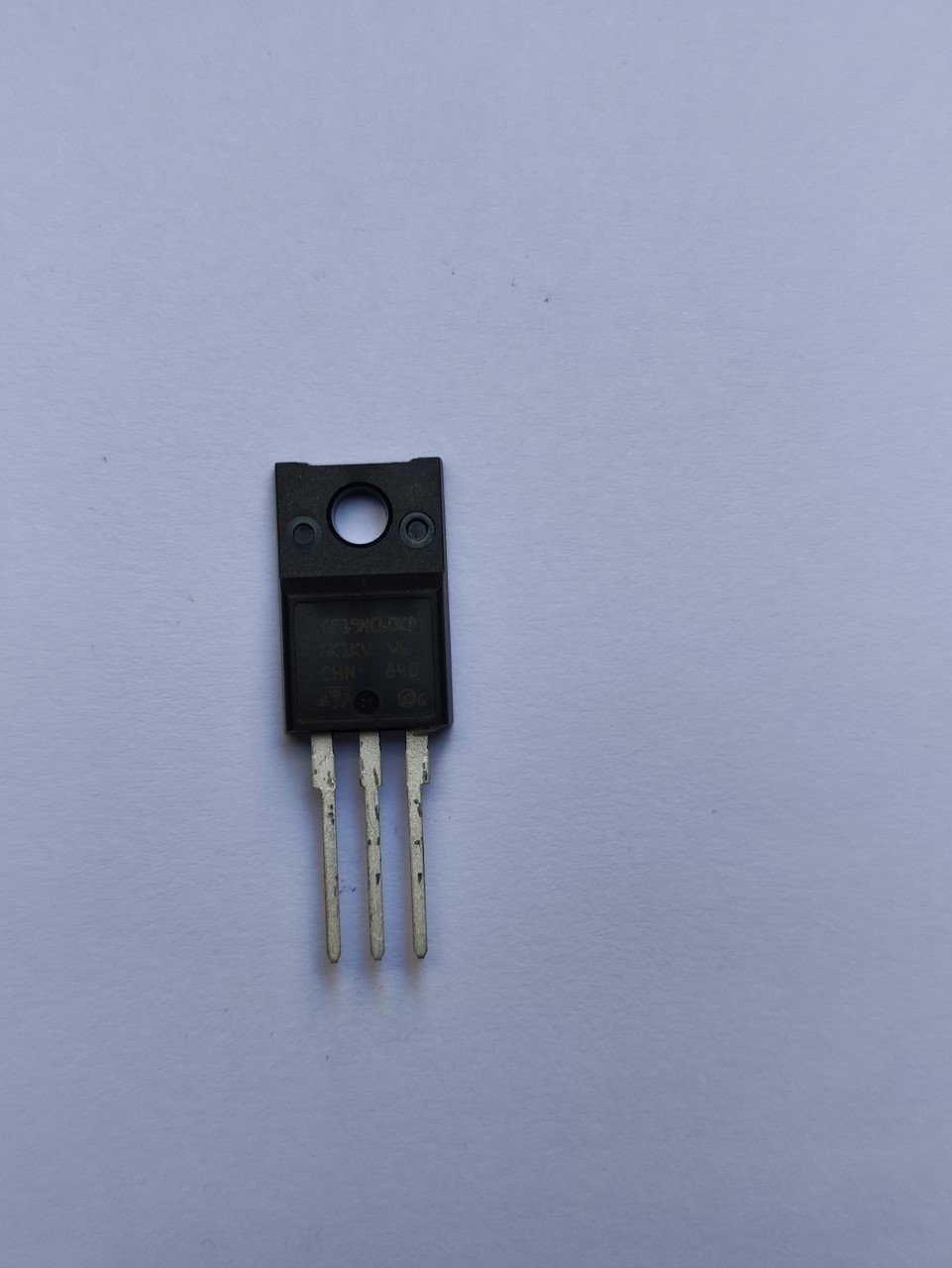

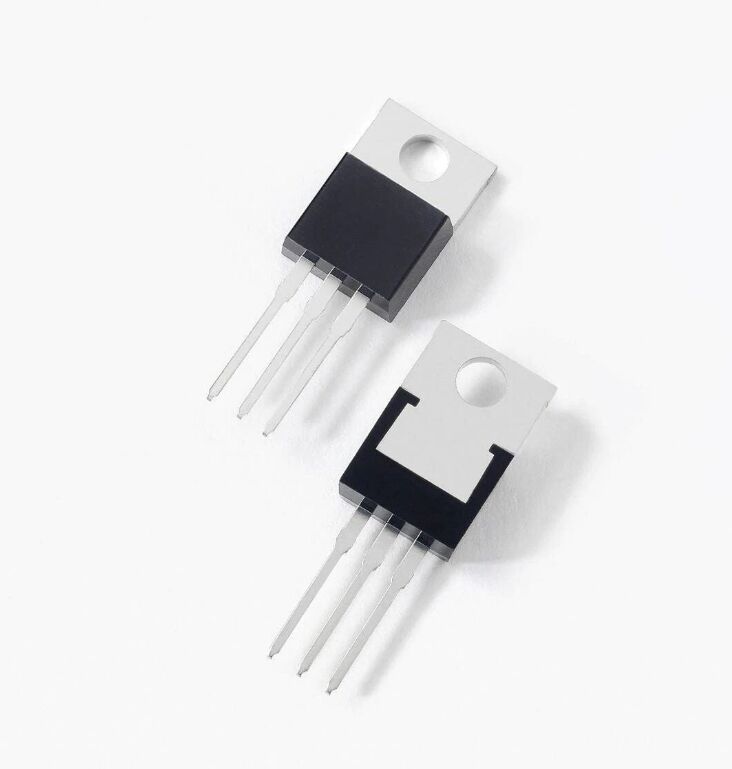

STGP19NC60KD TO-220 16A 600V IGBT + Anti-Parallel Diode
₺133,89 + KDV
50 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Marka
Stok Kodu
TR46511
Fiyat
133,89 TL + KDV
*14,94 TL den başlayan taksitlerle!
STGP19NC60KD TO-220 16A 600V IGBT + Anti-Parallel Diode
Type: IGBT + Anti-Parallel Diode
Marking Code: GP19NC60KD
Type of IGBT Channel: N
Absolute Maximum Ratings
Pc ⓘ - Maximum Power Dissipation: 125 W
|Vce|ⓘ - Maximum Collector-Emitter Voltage: 600 V
|Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V
|Ic| ⓘ - Maximum Collector Current: 35 A @25℃
Tj ⓘ - Maximum Junction Temperature: 150 ℃
Electrical Characteristics
|VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 2 V @25℃
|VGEth|ⓘ - Maximum G-E Threshold Voltag: 6.5 V
tr ⓘ - Rise Time, typ: 8 nS
Coesⓘ - Output Capacitance, typ: 127 pF
Qg ⓘ - Total Gate Charge, typ: 55 nC
Package: TO220
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
STGP19NC60KD TO-220 16A 600V IGBT + Anti-Parallel Diode
Type: IGBT + Anti-Parallel Diode
Marking Code: GP19NC60KD
Type of IGBT Channel: N
Absolute Maximum Ratings
Pc ⓘ - Maximum Power Dissipation: 125 W
|Vce|ⓘ - Maximum Collector-Emitter Voltage: 600 V
|Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V
|Ic| ⓘ - Maximum Collector Current: 35 A @25℃
Tj ⓘ - Maximum Junction Temperature: 150 ℃
Electrical Characteristics
|VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 2 V @25℃
|VGEth|ⓘ - Maximum G-E Threshold Voltag: 6.5 V
tr ⓘ - Rise Time, typ: 8 nS
Coesⓘ - Output Capacitance, typ: 127 pF
Qg ⓘ - Total Gate Charge, typ: 55 nC
Package: TO220
