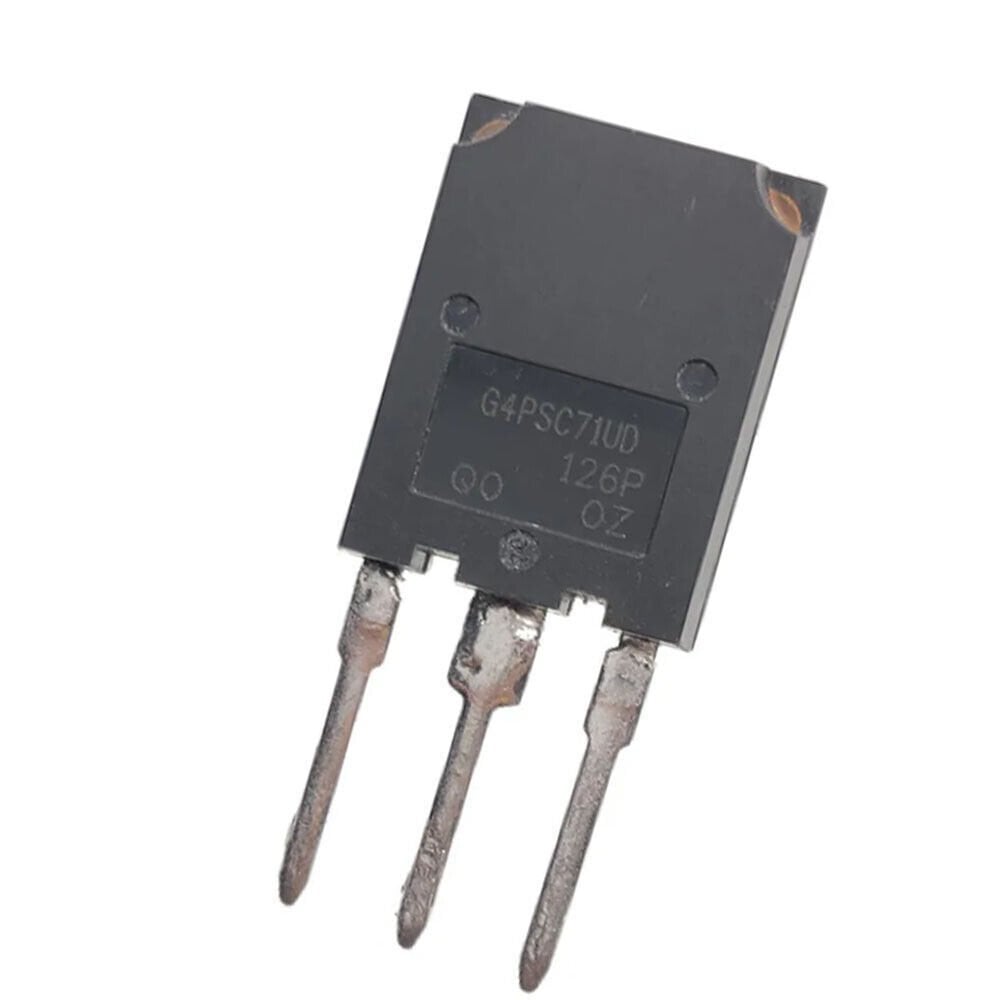

IRG4PSC71UD SUPER-247 85A 600V 350W IGBT TRANSISTOR
IRG4PSC71UD IGBT
Type Designator: IRG4PSC71UD
Type: IGBT + Anti-Parallel Diode
Type of IGBT Channel: N
Maximum Power Dissipation (Pc), W: 350
Maximum Collector-Emitter Voltage |Vce|, V: 600
Maximum Gate-Emitter Voltage |Vge|, V: 20
Maximum Collector Current |Ic| @25℃, A: 85
Collector-Emitter saturation Voltage |VCE(sat)|, typ, V: 1.67
Maximum G-E Threshold Voltag |VGE(th)|, V: 6
Maximum Junction Temperature (Tj), ℃: 150
Rise Time (tr), typ, nS: 94
Collector Capacity (Cc), typ, pF: 720
Total Gate Charge (Qg), typ, nC: 340
Package: SUPER247
Ürün Bilgisi
IRG4PSC71UD IGBT
Type Designator: IRG4PSC71UD
Type: IGBT + Anti-Parallel Diode
Type of IGBT Channel: N
Maximum Power Dissipation (Pc), W: 350
Maximum Collector-Emitter Voltage |Vce|, V: 600
Maximum Gate-Emitter Voltage |Vge|, V: 20
Maximum Collector Current |Ic| @25℃, A: 85
Collector-Emitter saturation Voltage |VCE(sat)|, typ, V: 1.67
Maximum G-E Threshold Voltag |VGE(th)|, V: 6
Maximum Junction Temperature (Tj), ℃: 150
Rise Time (tr), typ, nS: 94
Collector Capacity (Cc), typ, pF: 720
Total Gate Charge (Qg), typ, nC: 340
Package: SUPER247
