STN3NF06L SOT-223 4A 60V 3.3W 0.1Ω N-CHANNEL MOSFET
STN3NF06L MOSFET
Type Designator: STN3NF06L
Marking Code: 3NF06L
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 3.3 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 16 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.8 V
Maximum Drain Current |Id|: 4 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 7 nC
Rise Time (tr): 25 nS
Drain-Source Capacitance (Cd): 63 pF
Maximum Drain-Source On-State Resistance (Rds): 0.1 Ohm

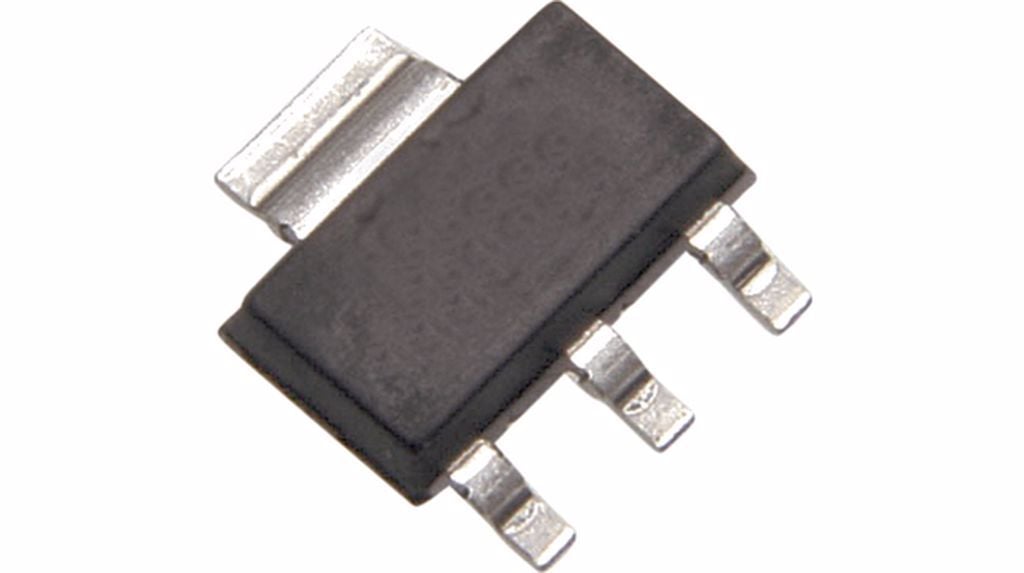

Package: SOT223
Ürün Bilgisi
STN3NF06L MOSFET
Type Designator: STN3NF06L
Marking Code: 3NF06L
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 3.3 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 16 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.8 V
Maximum Drain Current |Id|: 4 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 7 nC
Rise Time (tr): 25 nS
Drain-Source Capacitance (Cd): 63 pF
Maximum Drain-Source On-State Resistance (Rds): 0.1 Ohm
Package: SOT223
