STN4NF03L - (4NF03L) SOT-223 6.5A 30V 3.3W 0.05Ω N-CHANNEL MOSFET
STN4NF03L MOSFET
Type Designator: STN4NF03L
Marking Code: 4NF03L
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 3.3 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 16 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 1 V
Maximum Drain Current |Id|: 6.5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 6.5 nC
Rise Time (tr): 100 nS
Drain-Source Capacitance (Cd): 90 pF
Maximum Drain-Source On-State Resistance (Rds): 0.05 Ohm

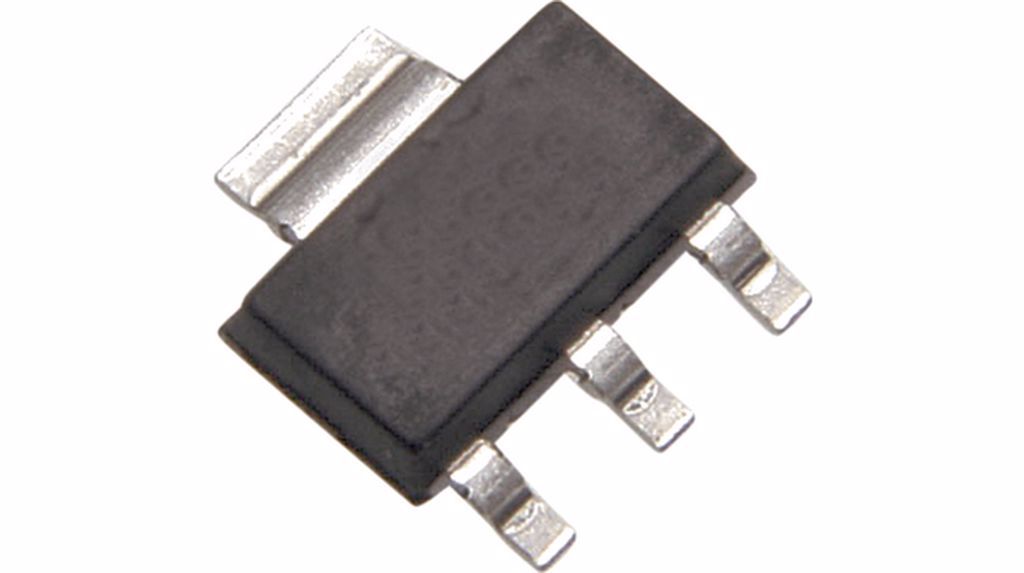

Package: SOT223
Ürün Bilgisi
STN4NF03L MOSFET
Type Designator: STN4NF03L
Marking Code: 4NF03L
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 3.3 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 16 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 1 V
Maximum Drain Current |Id|: 6.5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 6.5 nC
Rise Time (tr): 100 nS
Drain-Source Capacitance (Cd): 90 pF
Maximum Drain-Source On-State Resistance (Rds): 0.05 Ohm
Package: SOT223
