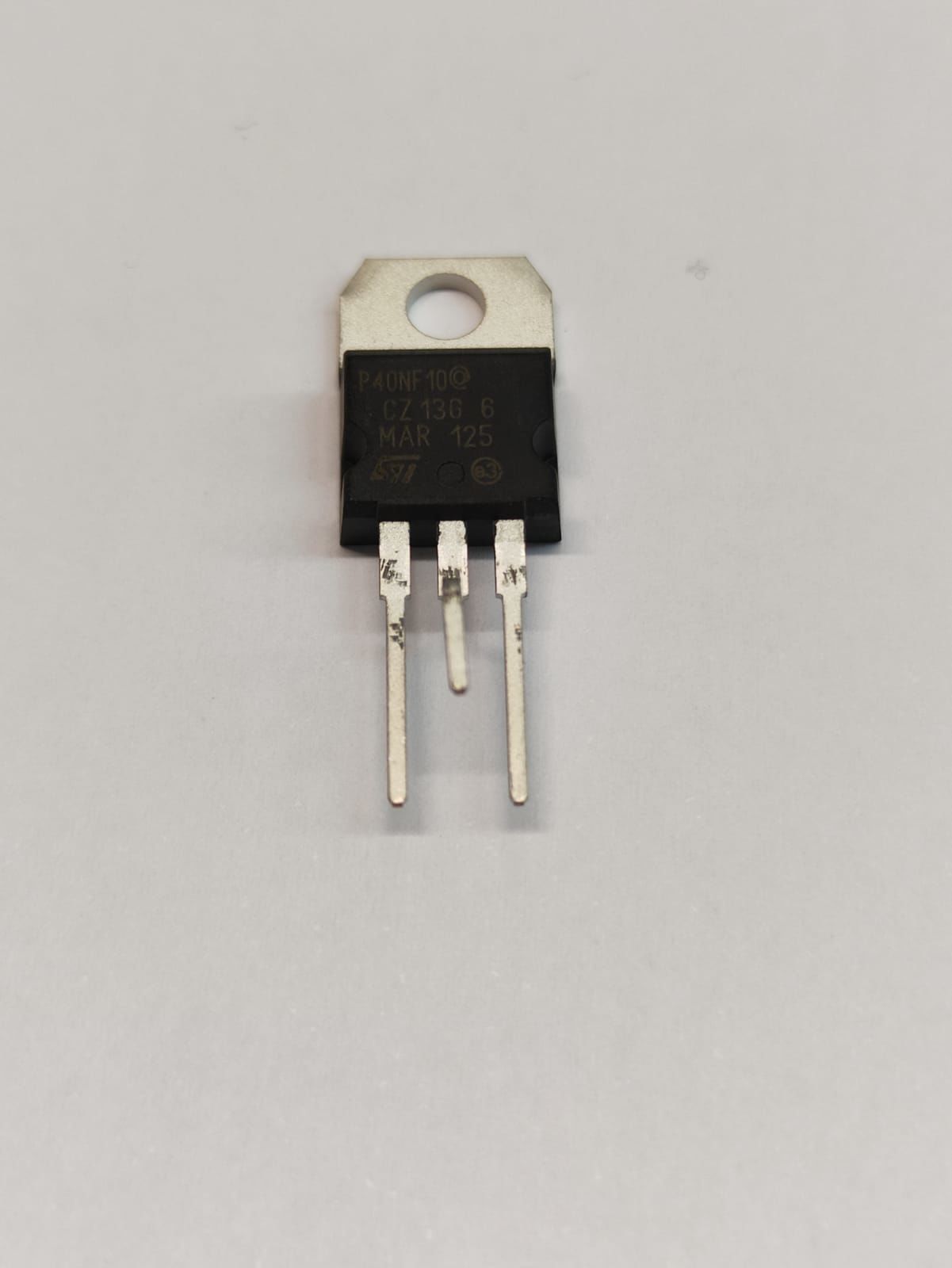

STP40NF10 TO-220 50A 100V 0.025Ω N-CHANNEL MOSFET
STP40NF10 MOSFET
Type Designator: STP40NF10
Marking Code: P40NF10
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 50 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 46.5 nC
Rise Time (tr): 46 nS
Drain-Source Capacitance (Cd): 298 pF
Maximum Drain-Source On-State Resistance (Rds): 0.028 Ohm
Package: TO220
