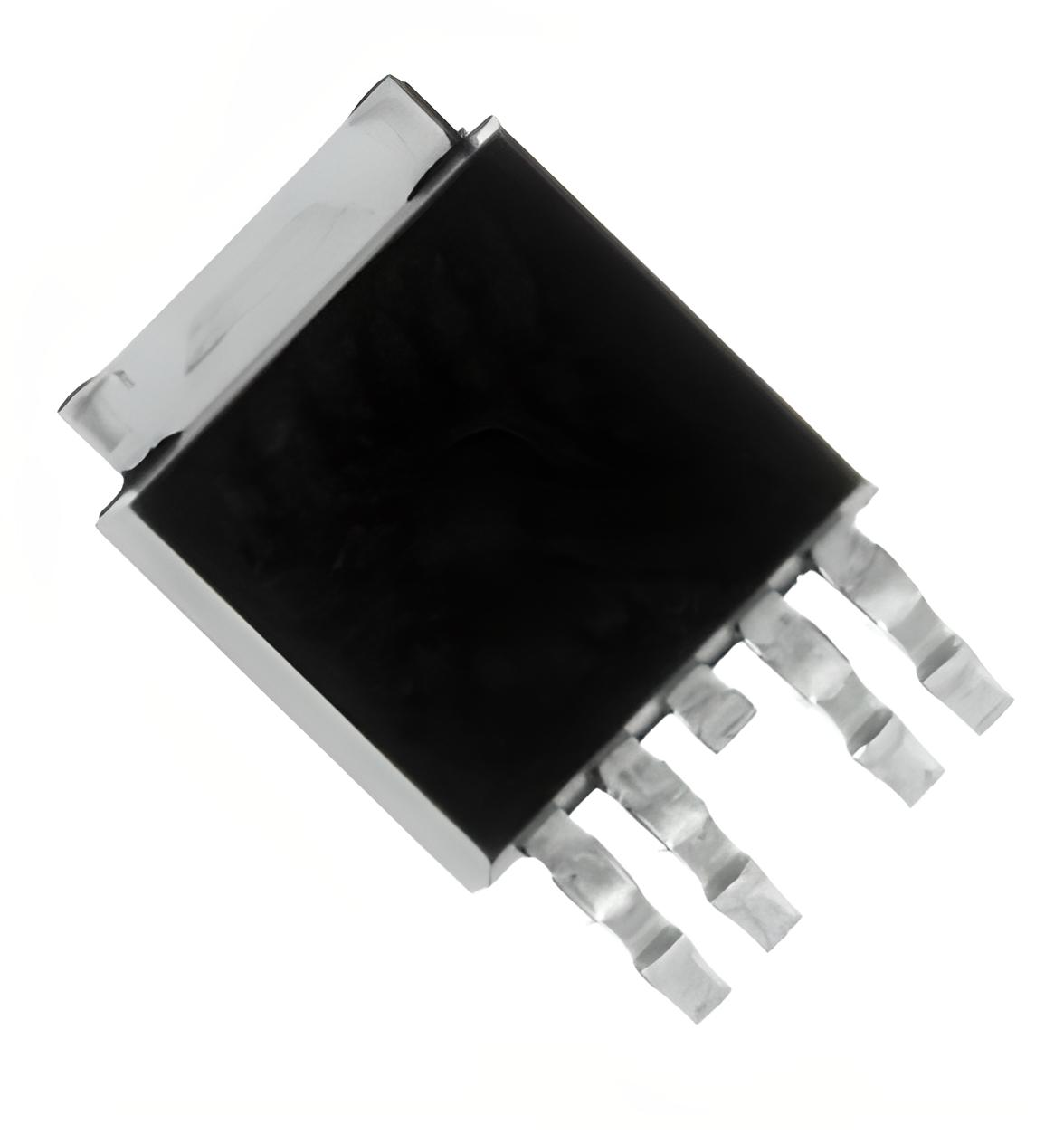

STU309DH TO-252-4L 30V 14/18A N/P-CHANNEL MOSFET TRANSISTOR
STU309DH
Type Designator: STU309DH
Type of Transistor: MOSFET
Type of Control Channel: NP -Channel
Maximum Power Dissipation (Pd): 11 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 18 A
Total Gate Charge (Qg): 110 nC
Drain-Source Capacitance (Cd): 180 pF
Maximum Drain-Source On-State Resistance (Rds): 0.022 Ohm
Package: TO252-4L
Ürün Bilgisi
STU309DH
Type Designator: STU309DH
Type of Transistor: MOSFET
Type of Control Channel: NP -Channel
Maximum Power Dissipation (Pd): 11 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 18 A
Total Gate Charge (Qg): 110 nC
Drain-Source Capacitance (Cd): 180 pF
Maximum Drain-Source On-State Resistance (Rds): 0.022 Ohm
Package: TO252-4L
