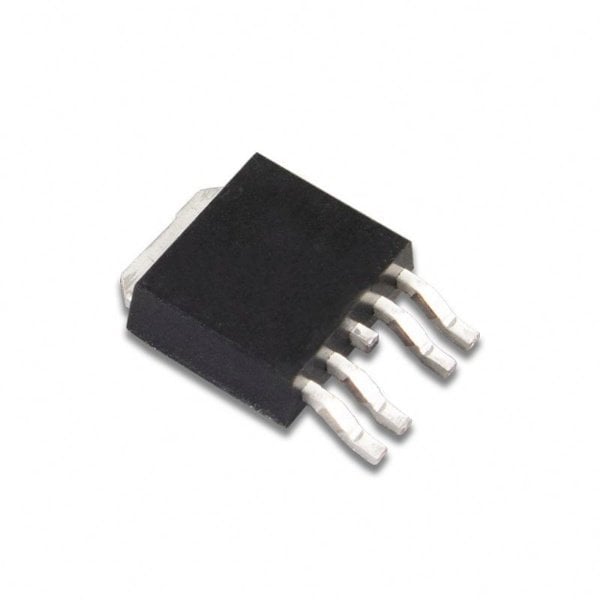

STU411D TO-252-4L 15A 40V N AND P-CHANNEL MOSFET
₺89,18 + KDV
3 Adet Stokta var, şimdi sipariş ver hemen kargoda
STU411D
Type Designator: STU411D
Type of Transistor: MOSFET
Type of Control Channel: NP -Channel
Maximum Power Dissipation (Pd): 11 W
Maximum Drain-Source Voltage |Vds|: 40 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 15 A
Total Gate Charge (Qg): 56 nC
Drain-Source Capacitance (Cd): 95 pF
Maximum Drain-Source On-State Resistance (Rds): 0.032 Ohm
Package: TO252-4L
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
STU411D
Type Designator: STU411D
Type of Transistor: MOSFET
Type of Control Channel: NP -Channel
Maximum Power Dissipation (Pd): 11 W
Maximum Drain-Source Voltage |Vds|: 40 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 15 A
Total Gate Charge (Qg): 56 nC
Drain-Source Capacitance (Cd): 95 pF
Maximum Drain-Source On-State Resistance (Rds): 0.032 Ohm
Package: TO252-4L
STU411D TO-252-4L 15A 40V N AND P-CHANNEL MOSFET
₺89 + KDV
