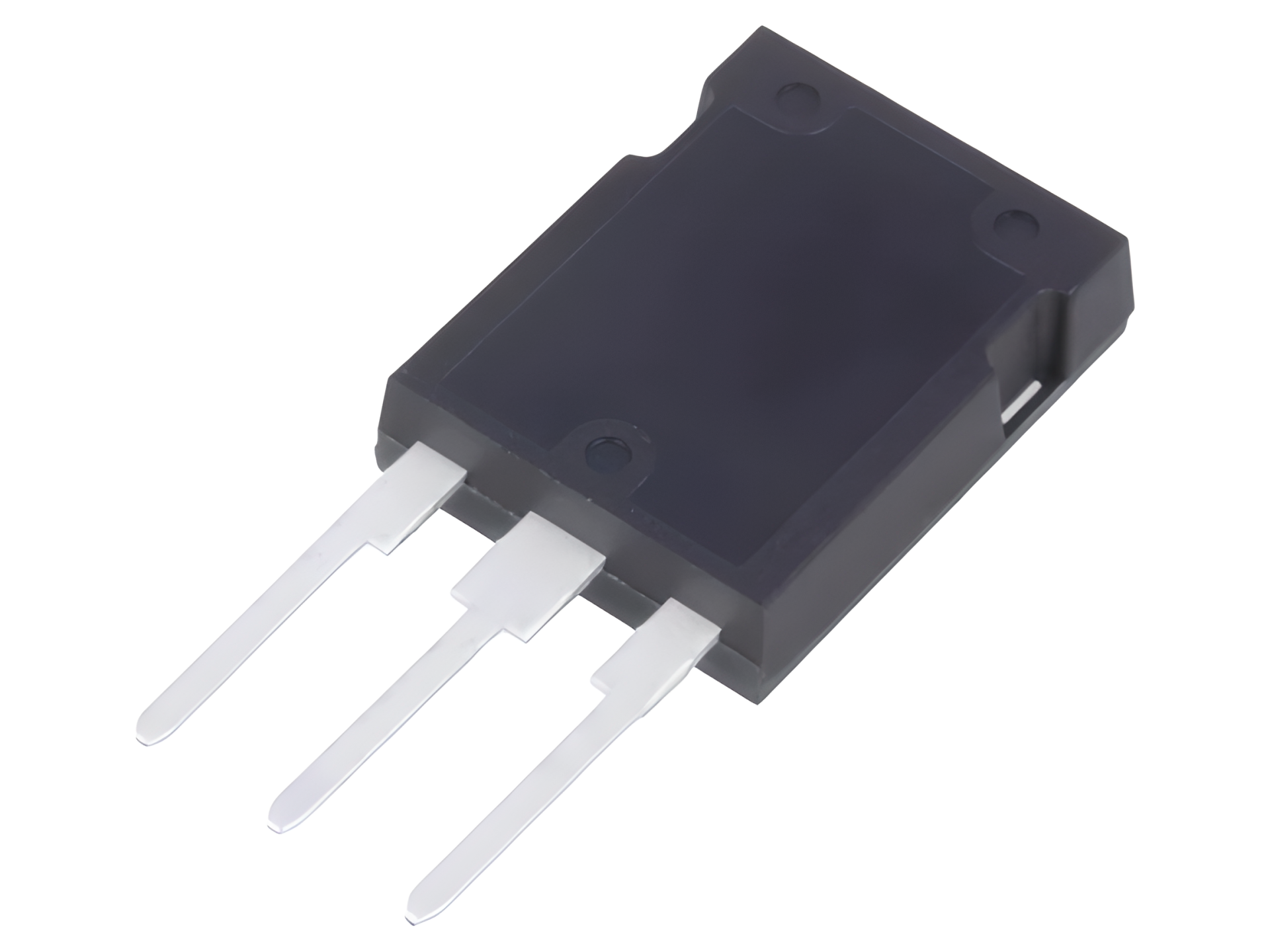

STY60NK30Z MAX-247 60A 300V 450W 0.045Ω N-CHANNEL MOSFET
STY60NK30Z MOSFET
Type Designator: STY60NK30Z
Marking Code: Y60NK30Z
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 450 W
Maximum Drain-Source Voltage |Vds|: 300 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4.5 V
Maximum Drain Current |Id|: 60 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 220 nC
Rise Time (tr): 90 nS
Drain-Source Capacitance (Cd): 1070 pF
Maximum Drain-Source On-State Resistance (Rds): 0.045 Ohm
Package: MAX247
Ürün Bilgisi
STY60NK30Z MOSFET
Type Designator: STY60NK30Z
Marking Code: Y60NK30Z
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 450 W
Maximum Drain-Source Voltage |Vds|: 300 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4.5 V
Maximum Drain Current |Id|: 60 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 220 nC
Rise Time (tr): 90 nS
Drain-Source Capacitance (Cd): 1070 pF
Maximum Drain-Source On-State Resistance (Rds): 0.045 Ohm
Package: MAX247
