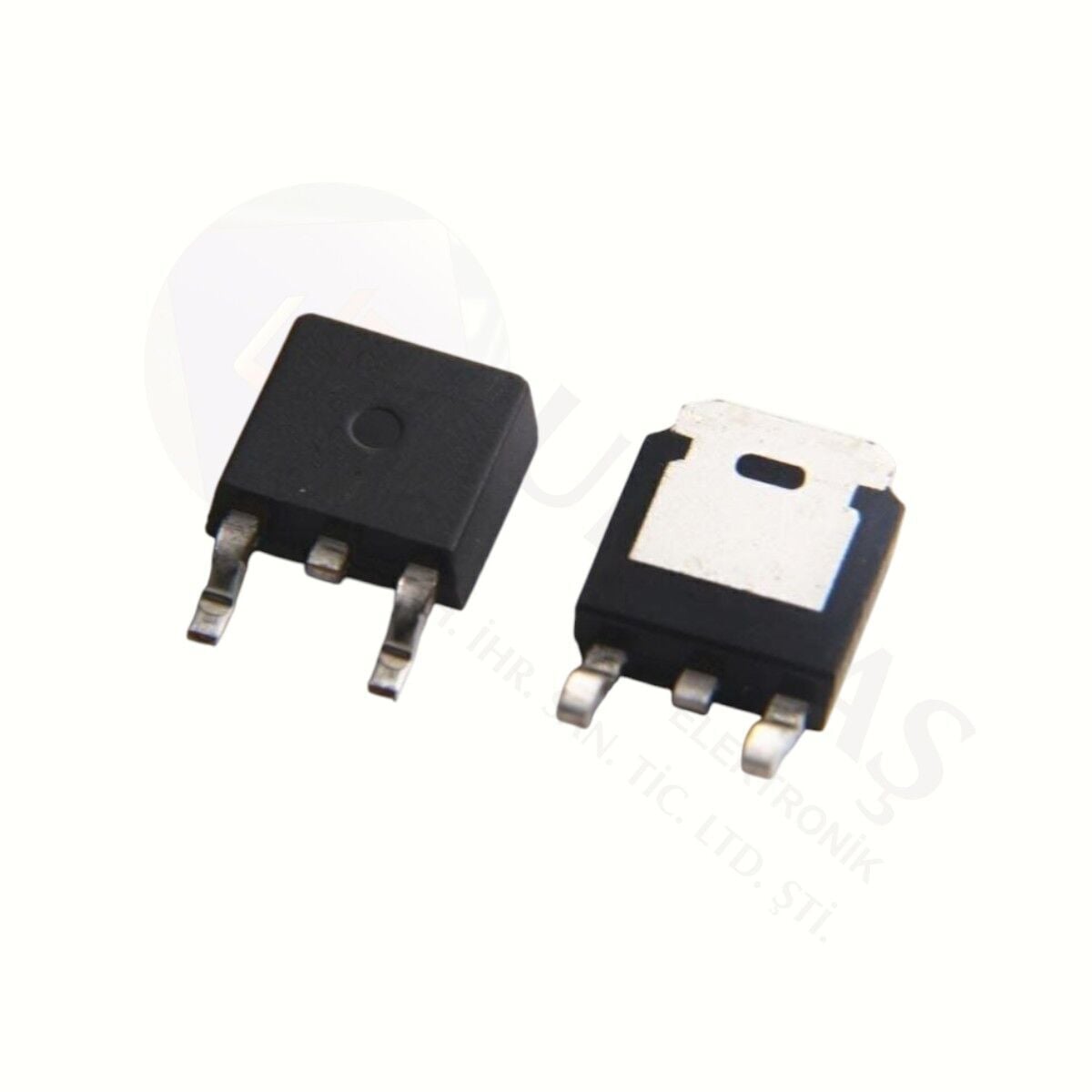

SVF4N60DTR TO-252 4A-600V 77W 2.4 OHM N-Channel Mosfet
₺31,54 + KDV
100 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
TR01058
Fiyat
31,54 TL + KDV
*3,52 TL den başlayan taksitlerle!
SVF4N60DTR TO-252 4A-600V 77W 2.4 OHM N-Channel Mosfet
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 77 W
|
Vds|ⓘ - Maximum Drain-Source Voltage: 600 V
Vds|ⓘ - Maximum Drain-Source Voltage: 600 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Id| ⓘ - Maximum Drain Current: 4 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 4 V
Qg ⓘ - Total Gate Charge: 13 nC
tr ⓘ - Rise Time: 26 nS
Cossⓘ - Output Capacitance: 55 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 2.4 Ohm
Package: TO252
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
SVF4N60DTR TO-252 4A-600V 77W 2.4 OHM N-Channel Mosfet
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 77 W
|
Vds|ⓘ - Maximum Drain-Source Voltage: 600 V
Vds|ⓘ - Maximum Drain-Source Voltage: 600 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Id| ⓘ - Maximum Drain Current: 4 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 4 V
Qg ⓘ - Total Gate Charge: 13 nC
tr ⓘ - Rise Time: 26 nS
Cossⓘ - Output Capacitance: 55 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 2.4 Ohm
Package: TO252
