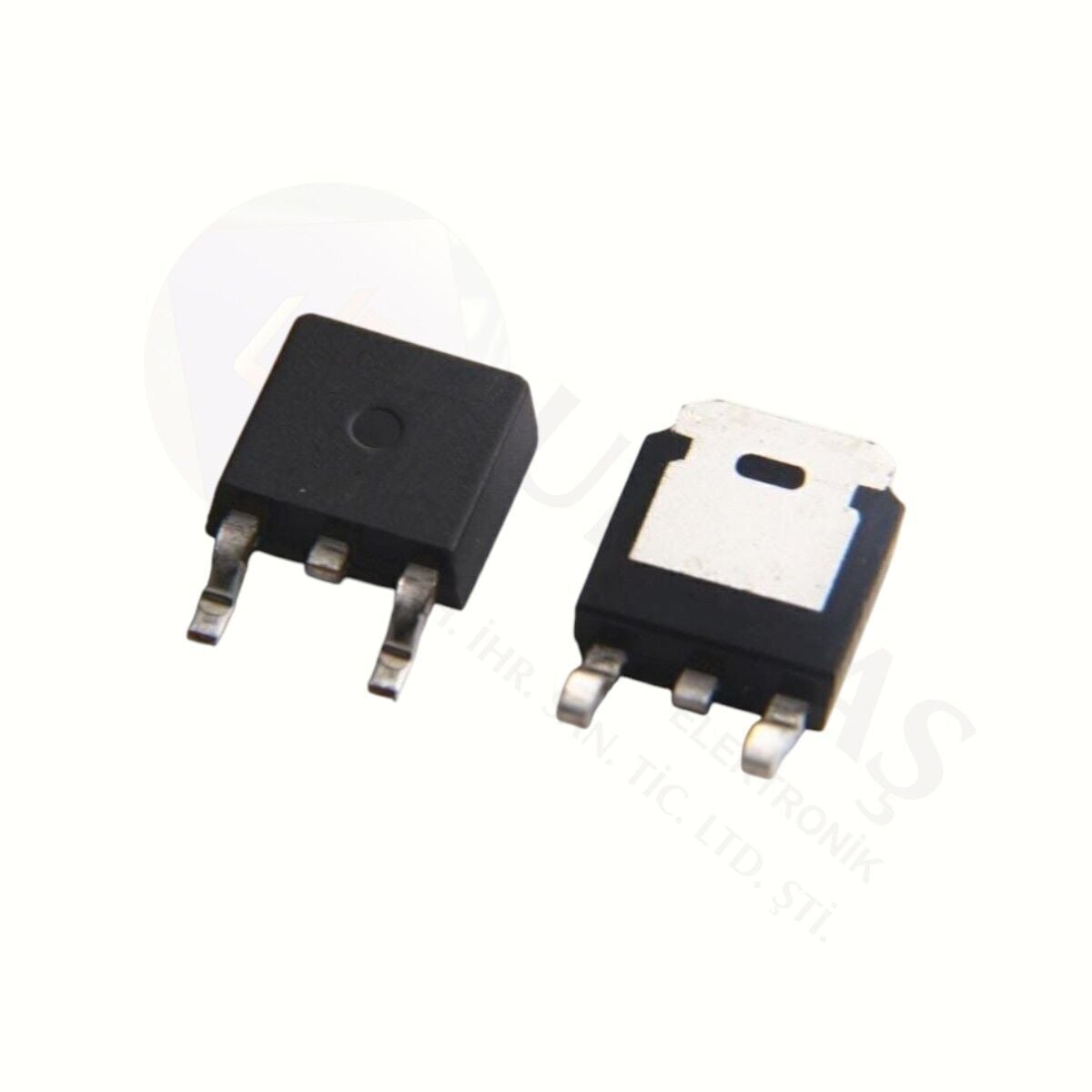

SVF7N65CDTR TO-252 7A-650V 89W 1.4 OHM N-Channel Mosfet
₺60,82 + KDV
100 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
TR010581
Fiyat
60,82 TL + KDV
*6,79 TL den başlayan taksitlerle!
SVF7N65CDTR TO-252 7A-650V 89W 1.4 OHM N-Channel Mosfet
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 89 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Id| ⓘ - Maximum Drain Current: 7 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 4 V
Qg ⓘ - Total Gate Charge: 21.2 nC
tr ⓘ - Rise Time: 32 nS
Cossⓘ - Output Capacitance: 98 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 1.4 Ohm
Package: TO252
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
SVF7N65CDTR TO-252 7A-650V 89W 1.4 OHM N-Channel Mosfet
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 89 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Id| ⓘ - Maximum Drain Current: 7 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 4 V
Qg ⓘ - Total Gate Charge: 21.2 nC
tr ⓘ - Rise Time: 32 nS
Cossⓘ - Output Capacitance: 98 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 1.4 Ohm
Package: TO252
