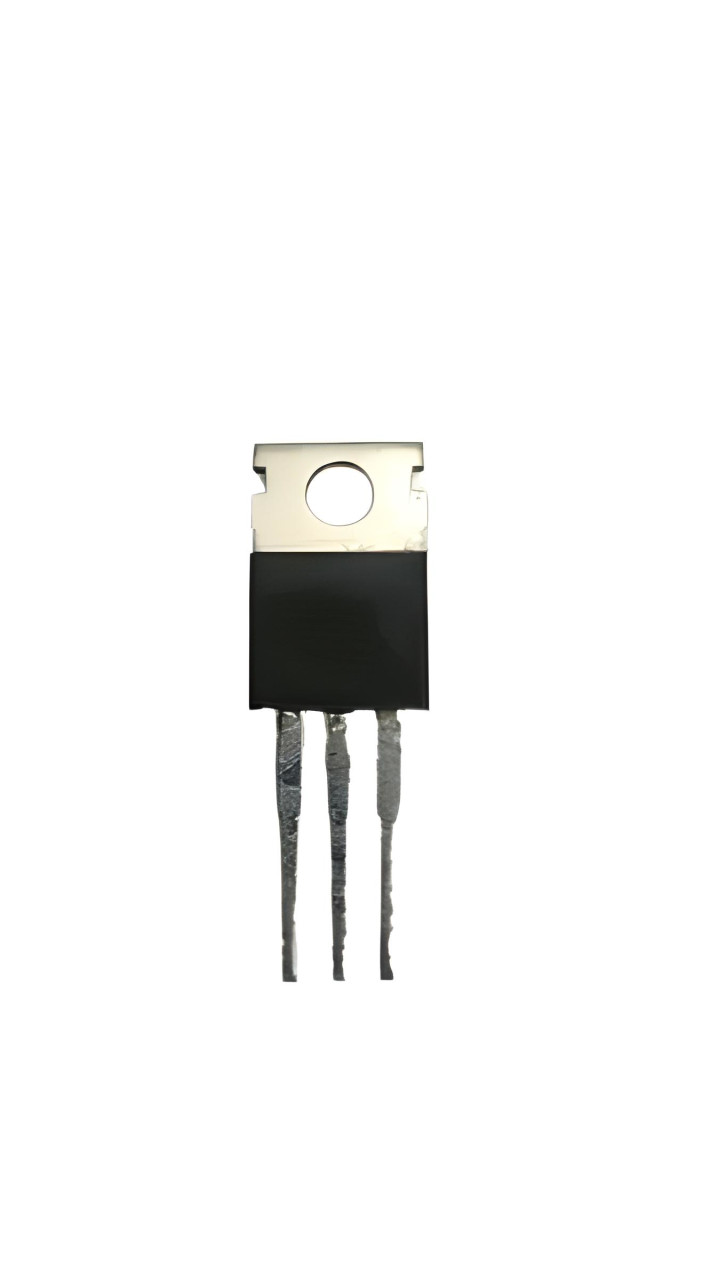

TIC226D TO-220 8A 400V TRIAC
TIC226D TRIAC
Type: Triac
Maximum peak gate power (PGM): 2.2 W
Maximum repetitive peak and off-state voltage (VDRM): 400 V
Maximum RMS on-state current (IT(RMS)): 8 A
Non repetitive surge peak on-state current (ITSM): 70 A
Critical rate of rise of off-state voltage (dV/dt): 100 V/µs
Maximum operating junction and storage temperature range (Tstg, Tj): -40..110 °C
Junction to ambient thermal resistance (RTH(j-a)): 62.5 K/W
Junction to case thermal resistance (RTH(j-c)): 1.8 K/W
Triggering gate voltage (VGT): 0.8 V
Peak on-state voltage drop (VTM): 1.6 V
Triggering gate current (IGT): 20 mA
Holding current (IH): 9 mA
Package: TO‑220
Ürün Bilgisi
TIC226D TRIAC
Type: Triac
Maximum peak gate power (PGM): 2.2 W
Maximum repetitive peak and off-state voltage (VDRM): 400 V
Maximum RMS on-state current (IT(RMS)): 8 A
Non repetitive surge peak on-state current (ITSM): 70 A
Critical rate of rise of off-state voltage (dV/dt): 100 V/µs
Maximum operating junction and storage temperature range (Tstg, Tj): -40..110 °C
Junction to ambient thermal resistance (RTH(j-a)): 62.5 K/W
Junction to case thermal resistance (RTH(j-c)): 1.8 K/W
Triggering gate voltage (VGT): 0.8 V
Peak on-state voltage drop (VTM): 1.6 V
Triggering gate current (IGT): 20 mA
Holding current (IH): 9 mA
Package: TO‑220
