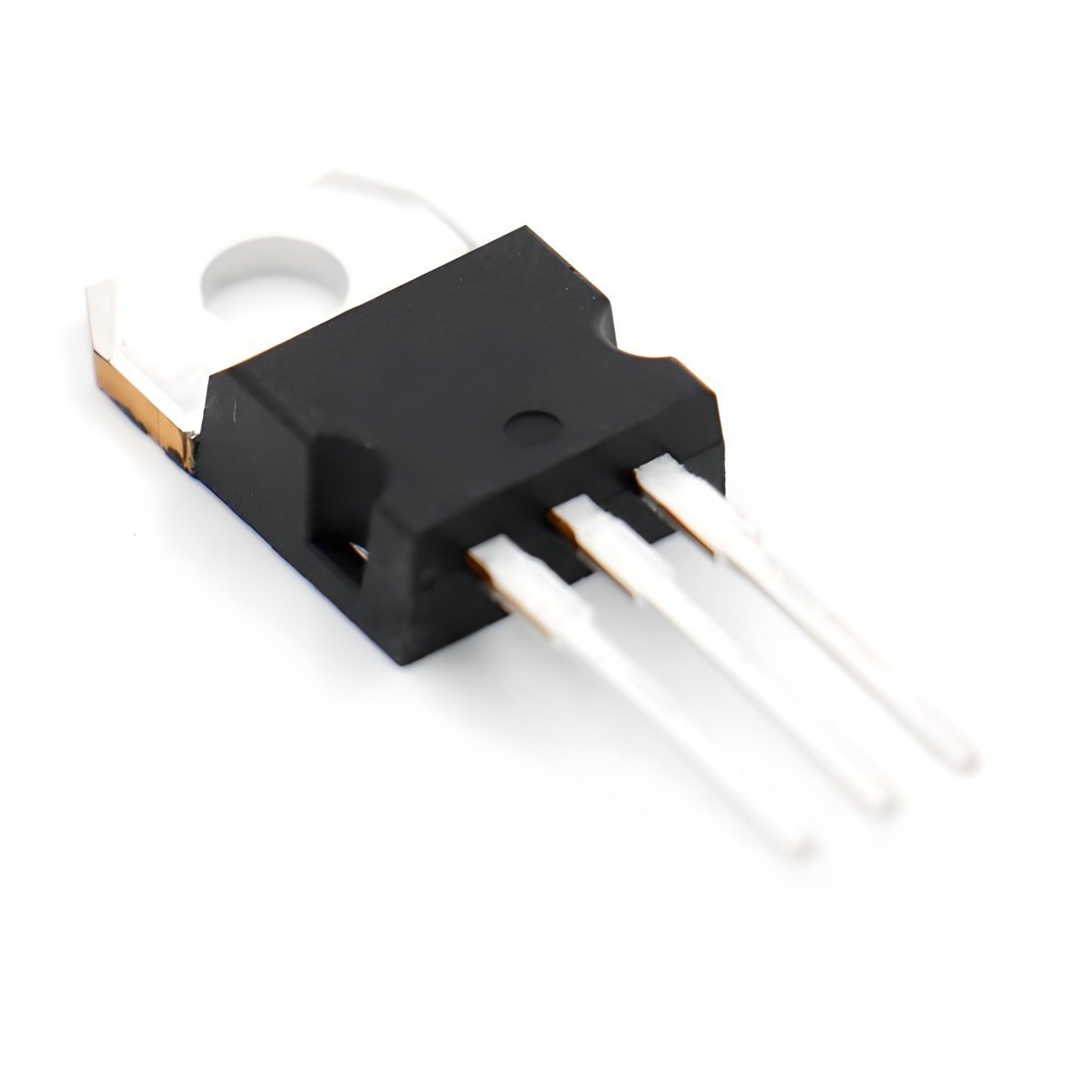

TIP121 TO-220 5A 80V 65W NPN DARLINGTON TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
129 Adet
Fiyat
0,35 USD + KDV
*1,64 TL den başlayan taksitlerle!
17,66 TL
TIP121 TO-220 5A 80V 65W NPN DARLINGTON TRANSISTOR
TIP121
Type Designator: TIP121
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 65 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 1000
Package: TO220
