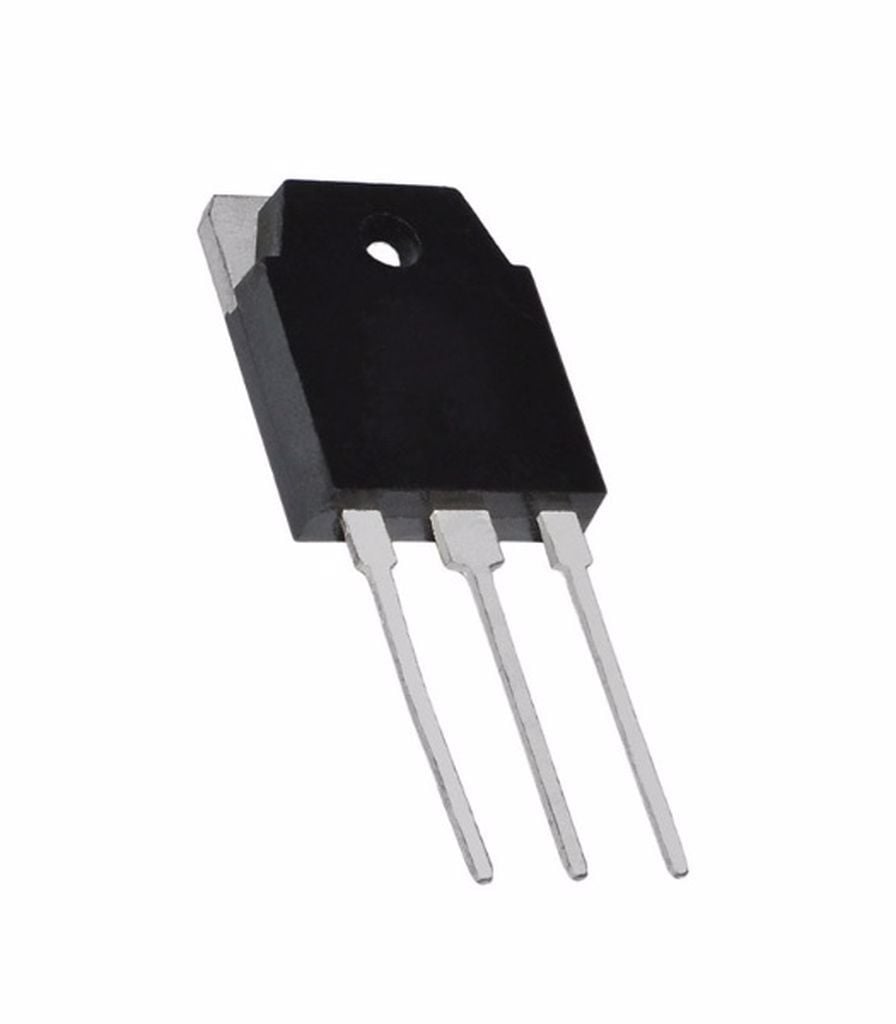

TK20J50D TO-3P 280W 20A 500V N-CHANNEL MOSFET TRANSİSTÖR
TK20J50D
Type Designator: TK20J50D
Marking Code: K20J50D
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 280 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 20 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 45 nC
Rise Time (tr): 50 nS
Drain-Source Capacitance (Cd): 280 pF
Ürün Bilgisi
TK20J50D
Type Designator: TK20J50D
Marking Code: K20J50D
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 280 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 20 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 45 nC
Rise Time (tr): 50 nS
Drain-Source Capacitance (Cd): 280 pF
