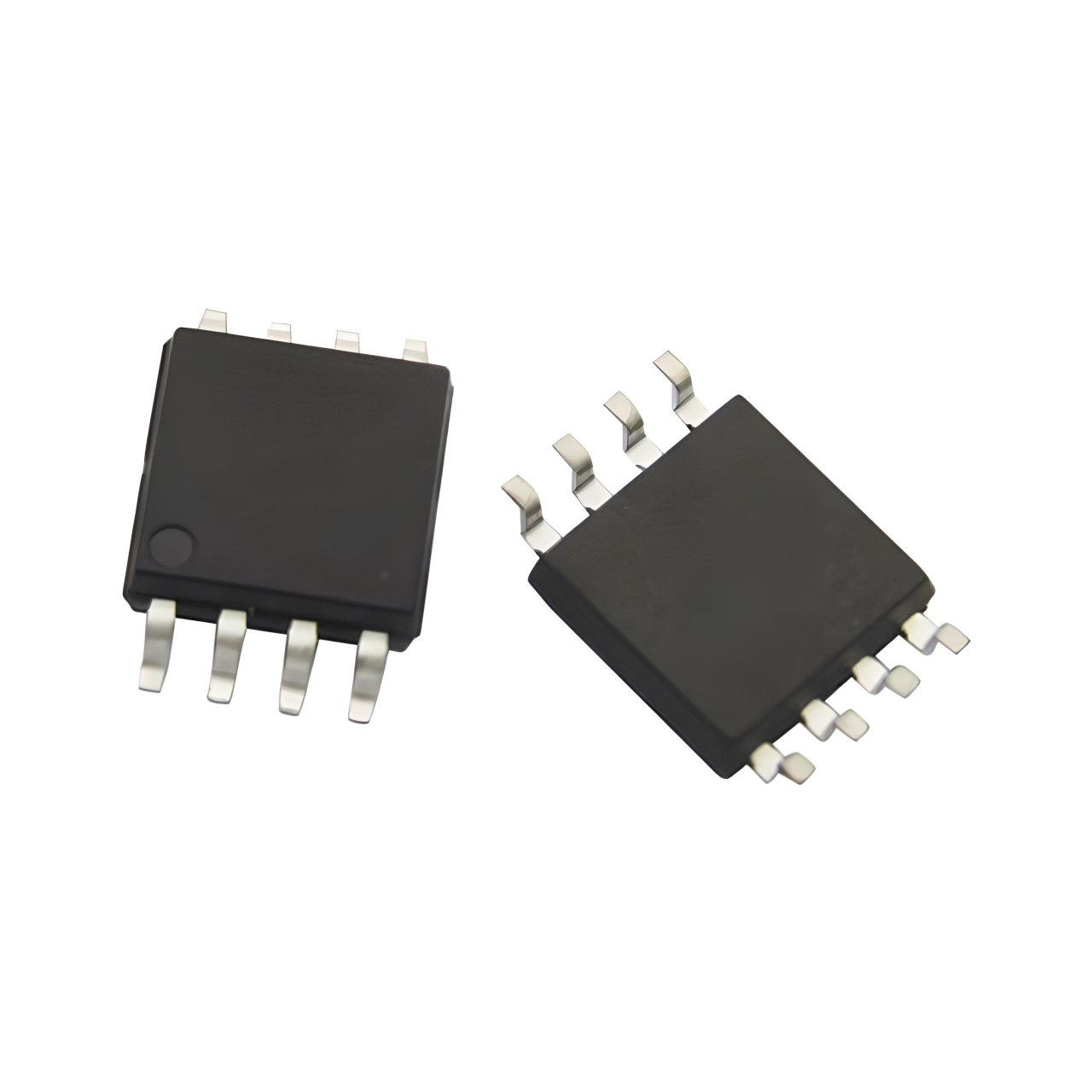

TPC8119 SOP-8 10A 30V P-CHANNEL MOSFET TRANSISTOR
TPC8119
Type Designator: TPC8119
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 1.9 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 10 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 40 nC
Rise Time (tr): 8 nS
Drain-Source Capacitance (Cd): 475 pF
Maximum Drain-Source On-State Resistance (Rds): 0.013 Ohm
Package: SOP8
Ürün Bilgisi
TPC8119
Type Designator: TPC8119
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 1.9 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 10 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 40 nC
Rise Time (tr): 8 nS
Drain-Source Capacitance (Cd): 475 pF
Maximum Drain-Source On-State Resistance (Rds): 0.013 Ohm
Package: SOP8
