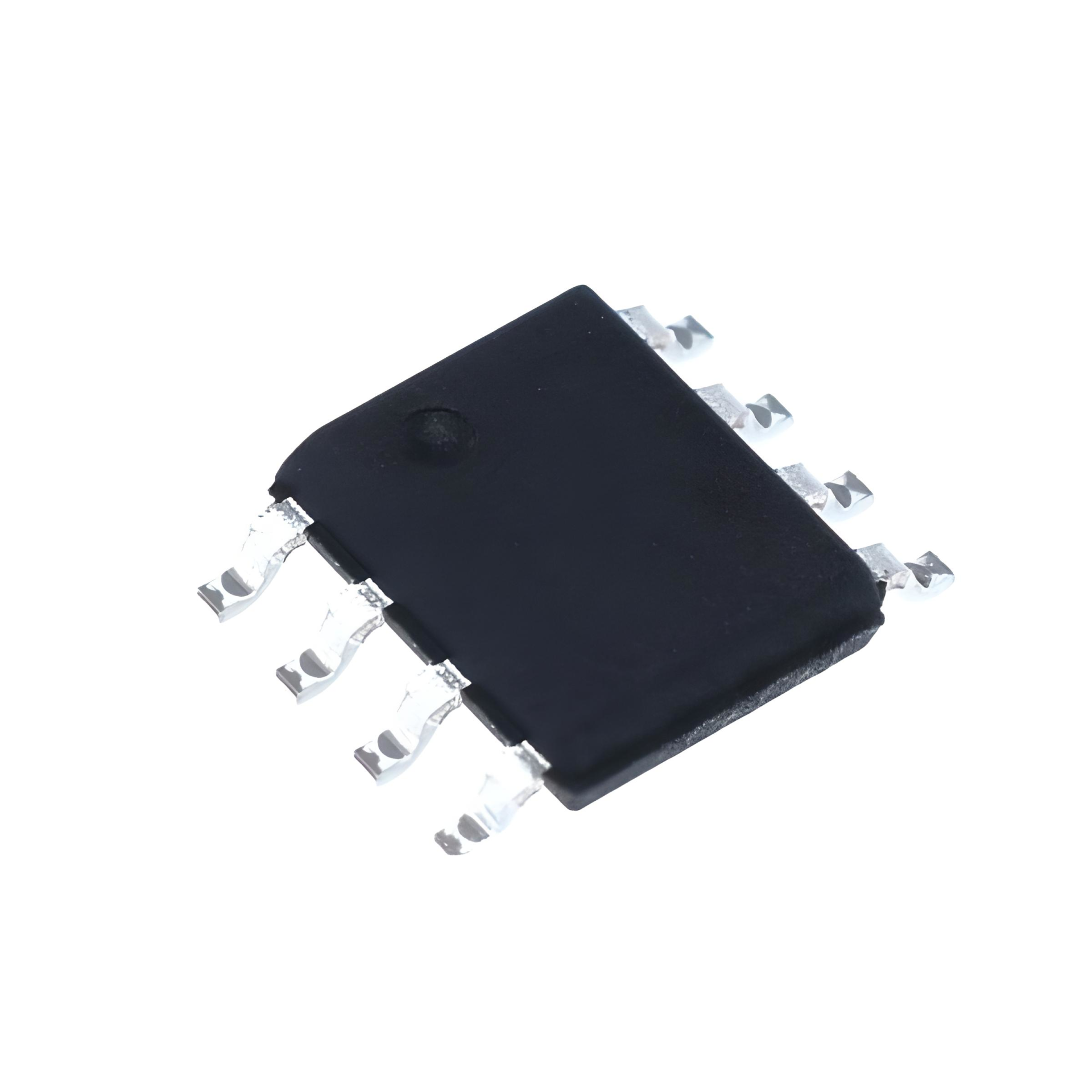

TPC8206 SOP-8 5A 60V 1.5W 0.05Ω N-CHANNEL MOSFET
TPC8206 MOSFET
Type Designator: TPC8206
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.5 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 5 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 2.6 nS
Drain-Source Capacitance (Cd): 190 pF
Maximum Drain-Source On-State Resistance (Rds): 0.05 Ohm
Package: SOP8
Ürün Bilgisi
TPC8206 MOSFET
Type Designator: TPC8206
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.5 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 5 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 2.6 nS
Drain-Source Capacitance (Cd): 190 pF
Maximum Drain-Source On-State Resistance (Rds): 0.05 Ohm
Package: SOP8
