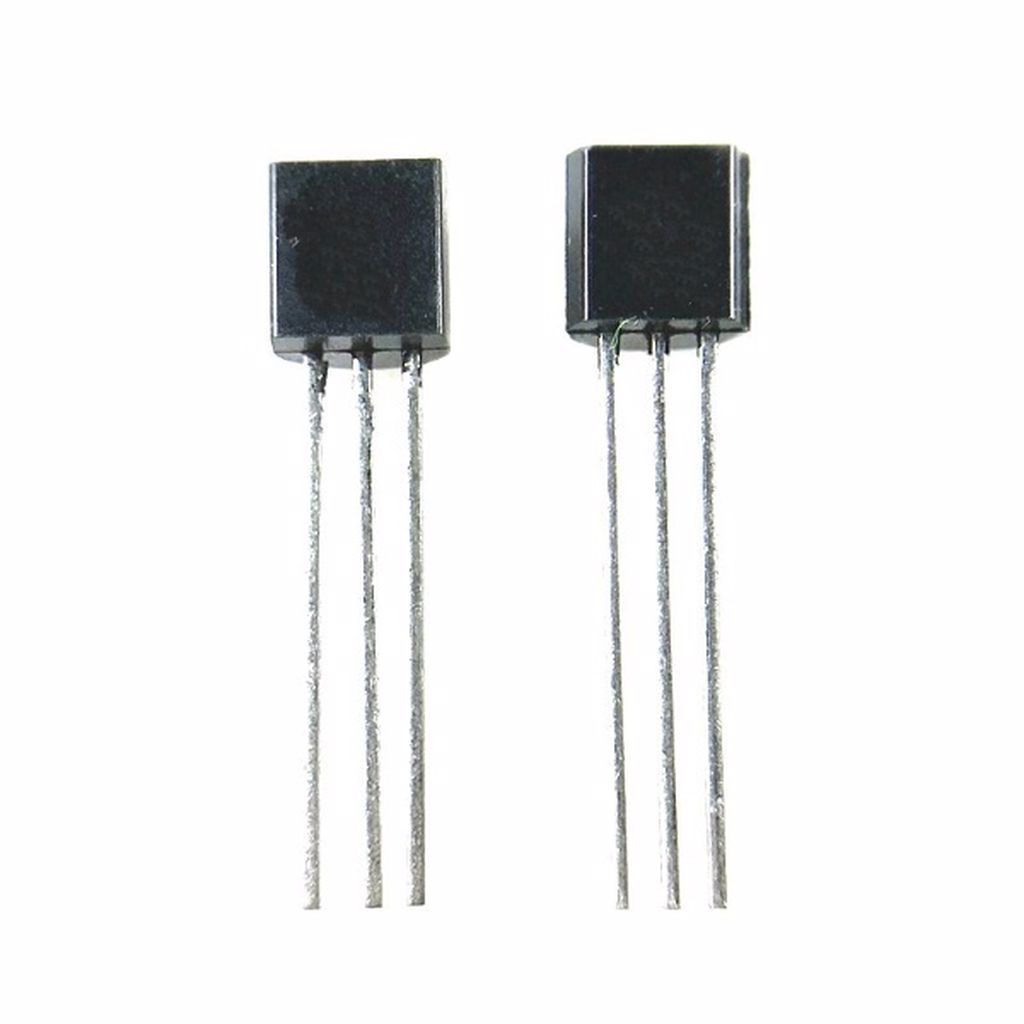

VN2222LL TO-92 0.15A 60V 0.4W N-CHANNEL MOSFET TRANSISTOR
VN2222LL
Type Designator: VN2222LL
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 0.4 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 0.15 A
Maximum Junction Temperature (Tj): 150 °C
Drain-Source Capacitance (Cd): 60 pF
Maximum Drain-Source On-State Resistance (Rds): 10 Ohm
Package: TO92
Ürün Bilgisi
VN2222LL
Type Designator: VN2222LL
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 0.4 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 0.15 A
Maximum Junction Temperature (Tj): 150 °C
Drain-Source Capacitance (Cd): 60 pF
Maximum Drain-Source On-State Resistance (Rds): 10 Ohm
Package: TO92
